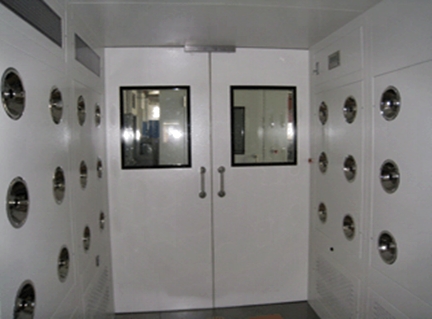

Air Shower

     AIR SHOWER is the main equipment used for eliminating dust from the CLEANROOM.
- GALVANIZE SHEET sprayed and dried with EPOXY or STAINLESS
- PRE-FILTER type SYNTHETIC
- NOZZLE material STAINLESS
- HEPA FILTER EFF. 99.99% at 0.3 MICRON
- Aluminium door with MAGNETIC LOCK between enter and exit gates.
- CONTROL system type PLC. - Standard size 1,500(W) x 1,000(L) x 200(H) MM

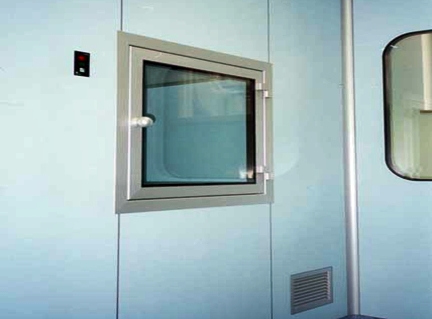

Passbox

     For transportation of materials or products in - out from the CASING CLEANROOM , sprayed and dried with EPOXY, the inner wall lined up with STAINLESS # 304, SWING open door has ACRYLIC chanel to watch the transportation process, MECHANICAL door locked system which will INTERLOCK two sides of the door, standard size inner measured 600(W) x 600(L) x 600(H) MM.

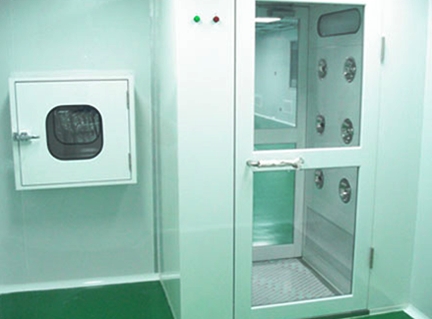

PASSBOX WITH AIR SHOWER
AIR SHOWER used for reducing dust on the products before move to CLEANROOM, complied with CLEANROOM level ISO.-CLASS 3, 4, 5 (CLASS 1, 10, 100).
• Adjustable sizes, to fit with size of the materials or products which will be transported.
• Left-right or up-down sliding door as required, to fit with size of the materials or products which will be transported.

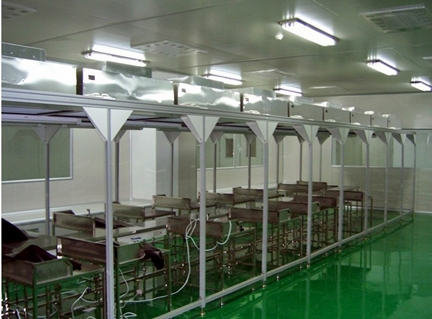

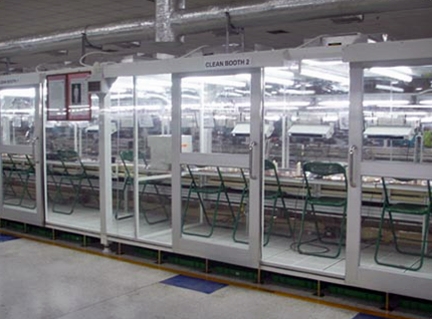

Cleanbooth

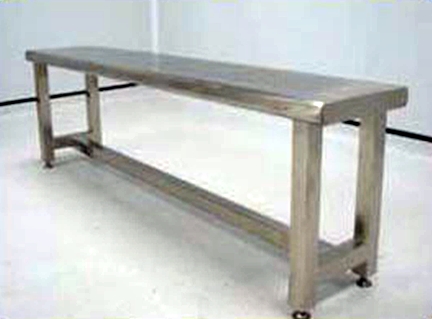

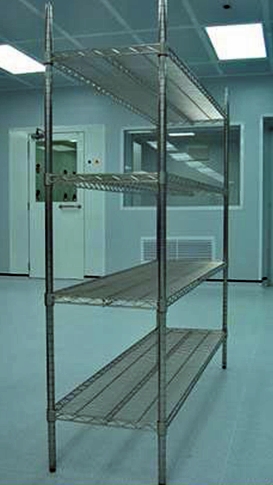

Furniture
